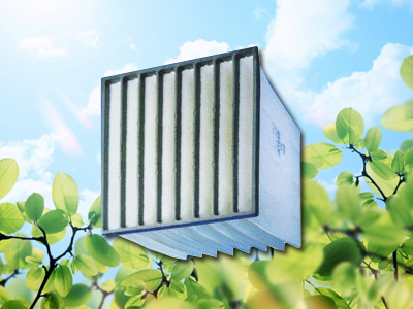

Self-supported Pocket Filter

  • Applications:coarse and fine particle filtration
    Type:multi-pocket filter
    Frame:galvanized steel, aluminium or plastic
    Filter media:progressively structured synthetic fiber
    Gasket:EVA or none for plastic frame
    EN 779 Class:G3-F8
    Average arrestance:80%-99%(ASHRAE 52.1-1992)
    MERV:MERV 5-14(ASHRAE 52.2-1999)
    DIN 53438 Flammability:F1
    UL 900 Standard:CLASS 2
    Final pressure drop:(recommender) 250Pa(G3-F5)-400Pa(F6-F8)
    Max. air flow rate:125% of nominal air flow rate
    Max. operating temperature:100℃
    Max. relative humidity:100%



Type

Class

Dust Spot
Efficiency

Dimensions

Filtering
surface

(m2)

Rated
air flow (m3/h)

Initial pressure
drop (Pa)

Length
(mm)

Height
(mm)

Depth
(mm)

SP-30,6P

G3

≤20%

592

592

600

4.68

3400

25

SP-40,6P

G4

30-40%

592

592

600

4.68

3400

35

SP-50,6P

F5

40-60%

592

592

600

4.68

3400

45

SP-60,8P

F6

60-80%

592

592

600

6.20

3400

60

SP-80,8P

F7

80-90%

592

592

600

6.20

3400

90


Other Sizes: On request
