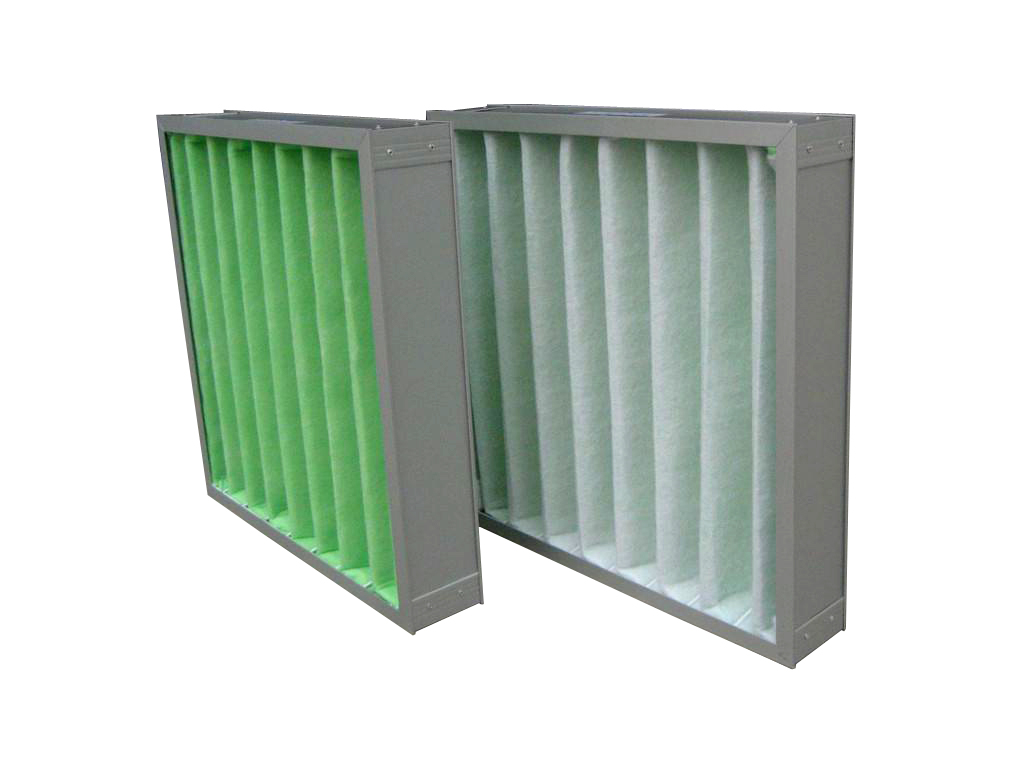

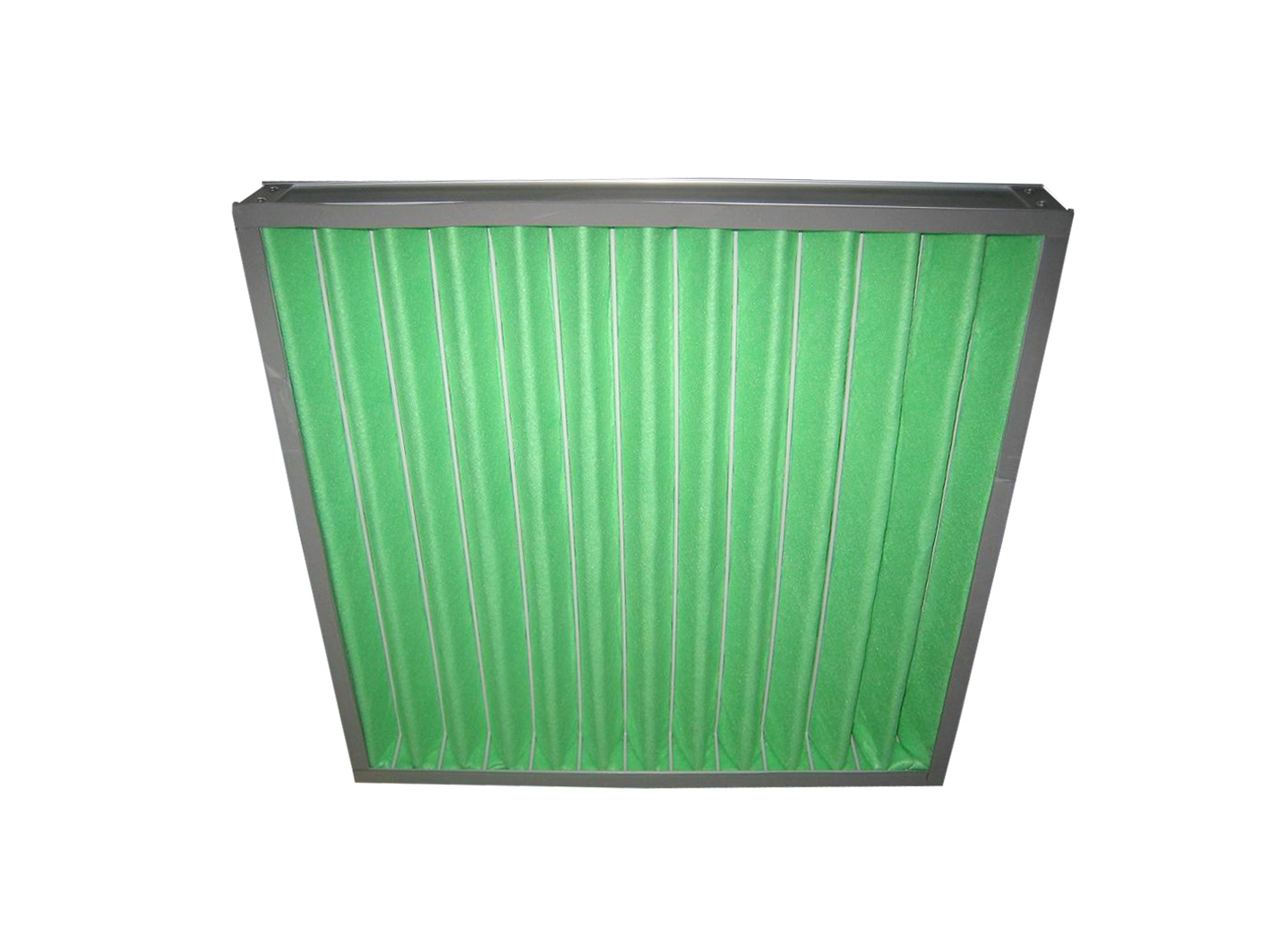

EcoPleat Washable Panel Filter
Low initial pressure drop
Robust construction
Washable
High temperature resistance
Economical
Robust construction
Washable
High temperature resistance
Economical
-
Applications：coarse particle filtration
Type：pleated panel filter
Frame：aluminium
Filter media：synthetic fiber
Grids：white epoxy painted steel bar
EN 779 Class：G3－G4
Average arrestance：84%－94%
MERV：MERV 5－8（ASHRAE 52.2-2017）
Final pressure drop：(recommender) 200Pa -（maximum）250Pa
Max. air flow rate：125% of nominal air flow rate
Max. operating temperature：100℃
-
Max. relative humidity：100%
-
Recycling：Washable for 2-3 times and can be reused
|
Type |
ISO16890 |
Class |
Dimensions |
Filtering surface (m2) |
Rated |
Initial pressure |
||
|
Length |
Height |
Depth |
||||||
|
AZB-WP-45 |
Coarse 75% |
G4 |
592 |
592 |
45 |
0.75 |
2500 |
90 |
|
AZB-WP-45 |
G4 |
630 |
630 |
70 |
1.15 |
3000 |
90 |
|
|
AZB-WP-55 |
ePM10 60% |
M5 |
592 |
592 |
45 |
0.75 |
2500 |
90 |
|
AZB-WP-55 |
M5 |
630 |
630 |
70 |
1.15 |
3000 |
90 |
|
Other Sizes: On request
